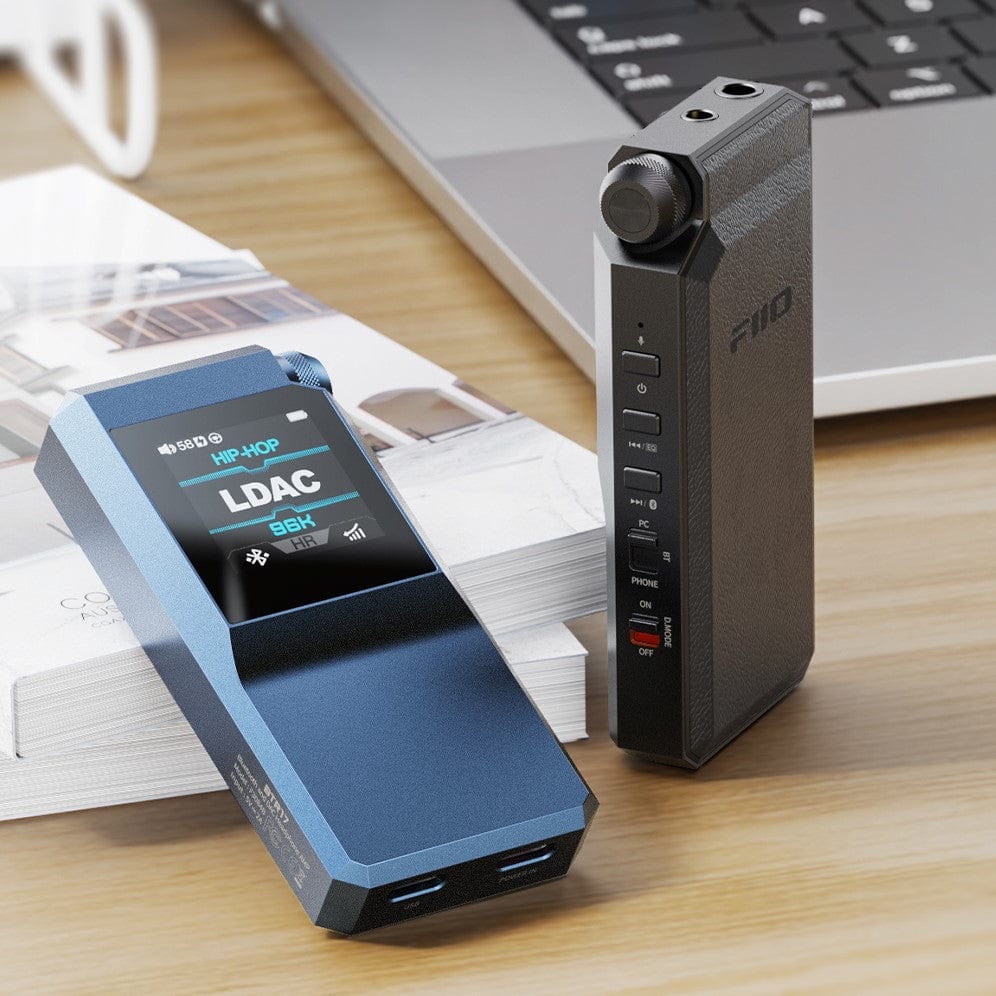

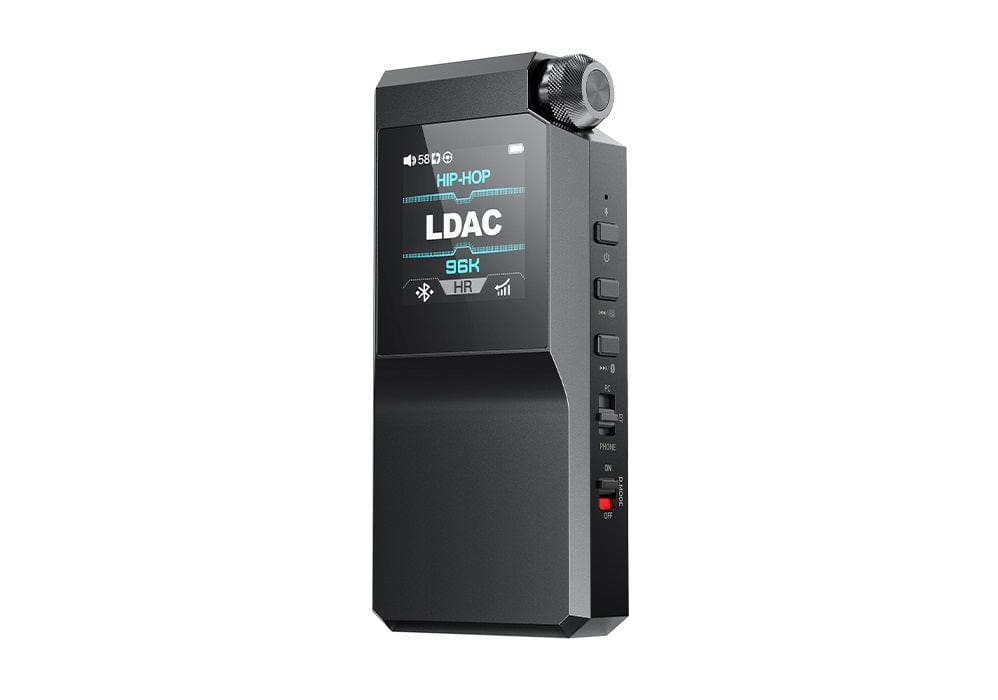

FiiO BTR17

FiiO BTR17 top of the line bluetooth DAC with THX headphone amp for wired headphones. BTR17 is a must own gadget for audiophiles who use headphones, as a usb dac or wireless dac - opens up so many great use cases for high-res audio!

Cutting Edge Bluetooth System

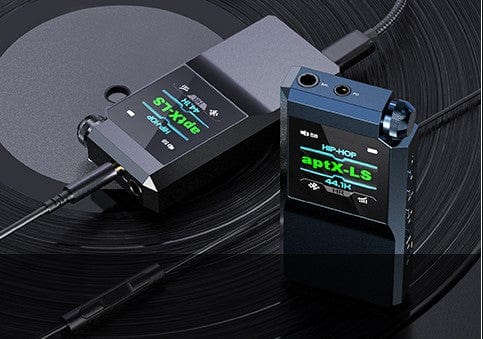

FiiO BTR17 is equipped with Qualcomm’s new flagship QCC5181 Bluetooth chip, which is capable of lossless quality within the aptX Adaptive system. This means the chip is capable of achieving CD-level lossless sound quality over Bluetooth audio, bringing you ever closer to the music with all of its intricate details.

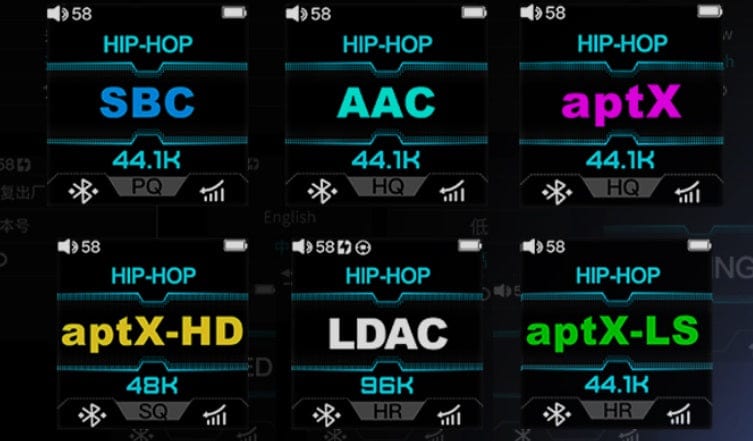

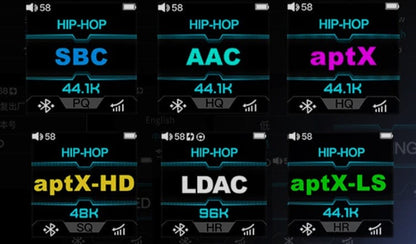

Additionally, the BTR17 also supports the latest Bluetooth standard – Bluetooth 5.4. It also supports the LDAC, and aptX Adaptive codecs, which when combined with Snapdragon Sound technology means your Bluetooth listening experience has never sounded this good before.

Desktop Mode for Huge Power

On the BTR17 is a dedicated D.Mode (desktop mode) switch along with a port to connect a USB power supply. When in desktop mode, if you connect the BTR17 to a phone as a dongle DAC and headphone amplifier you can also choose to connect an external power supply to the BTR17 via its dedicated power port.

Doing so means that the FiiO BTR17 will be completely powered via USB, which not only avoids overcharging and over-discharging its built-in battery but also means it is capable of powerful audio output, up to 650mW BAL out, without consuming the connected phone’s battery.

Dual DACs & Cleaner Audio

FiiO BTR17 is built around two ESS ES9069Q DACs, achieving high performance while using less power. This architecture helps to further reduce digital noise within the DAC, for a richer, musical sound against a cleaner audio background.

BTR17 has EQ presets you can easily select with the built in colour screen. FiiO engineers also created a 10-band Parametric EQ based on the XMOS XU316 usb chip and can be adjusted through the app and web interface.

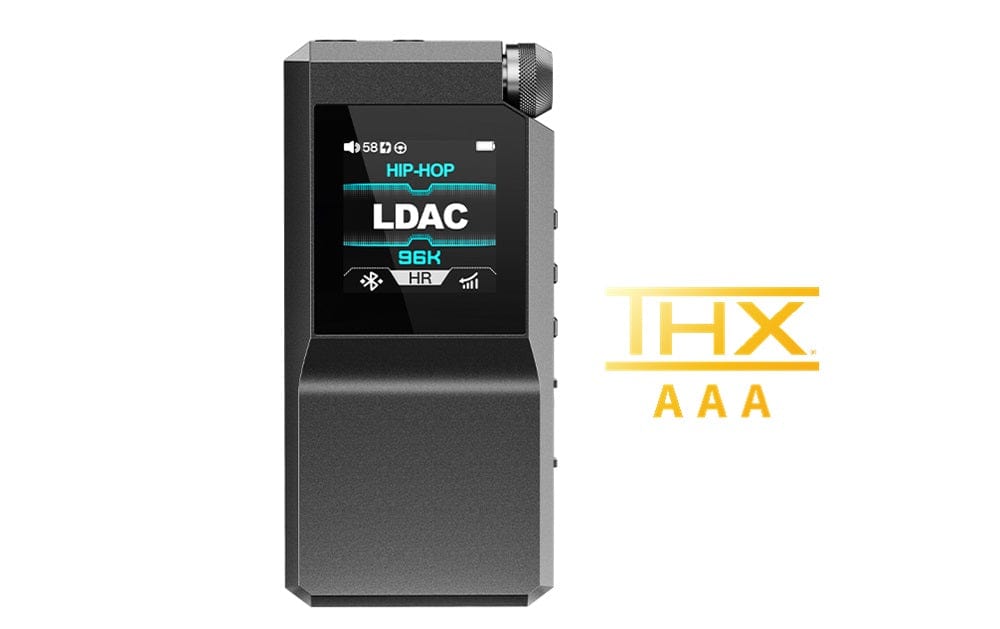

THX Balanced Headphone Amp

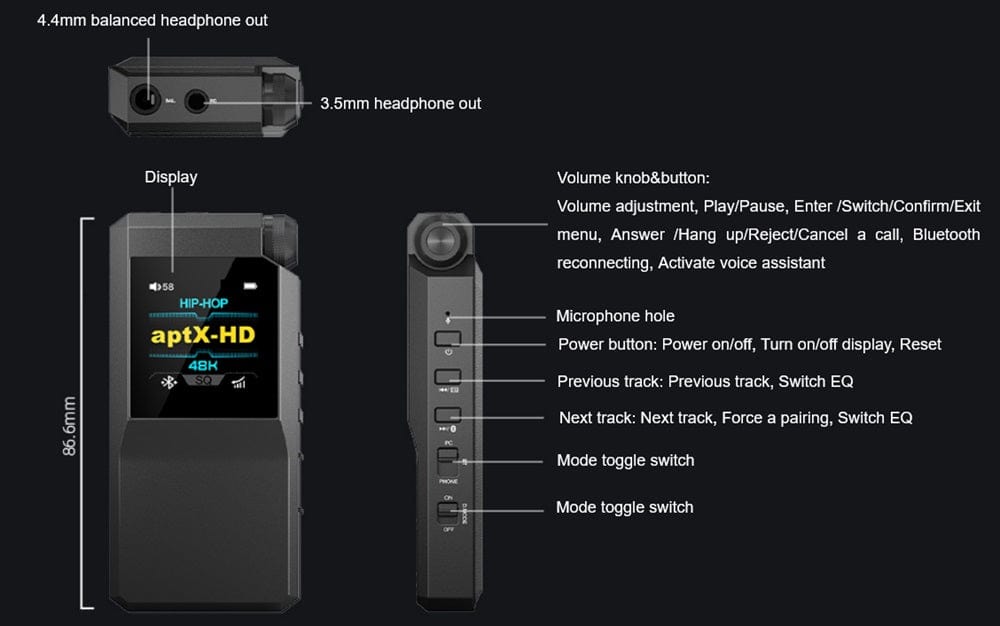

The headphone amp is an outstanding four-way full balanced THX AAA 78+ amp, providing strong driving power with incredibly clean, low distortion output, perfect for ultra sensitive IEM's up to many over ear headphones! Try the SE 3.5mm and the BAL 4.4mm outputs on the top panel.

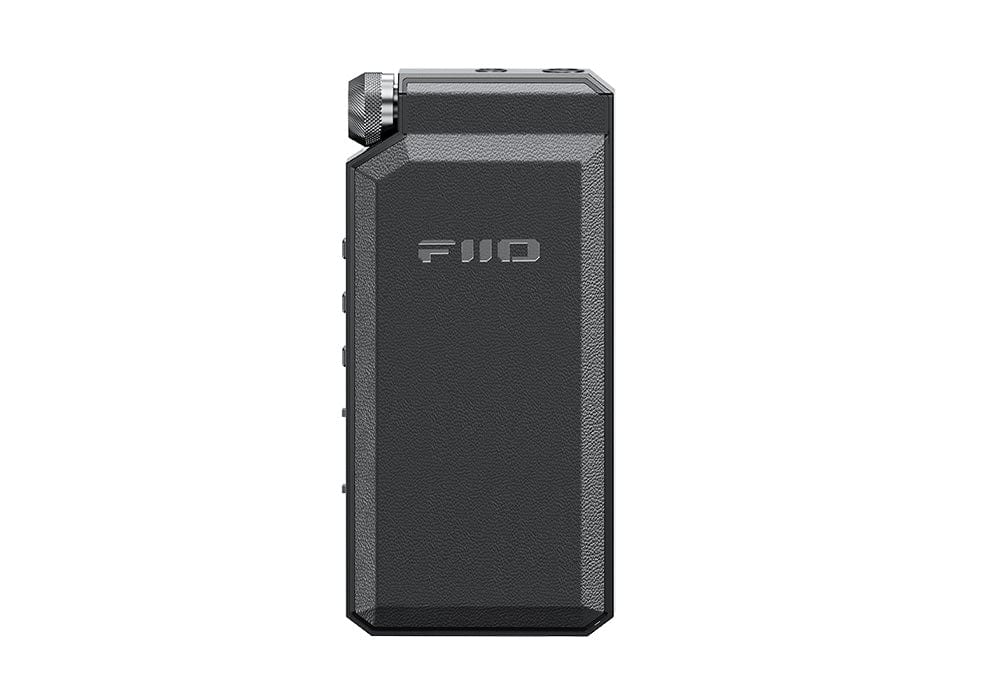

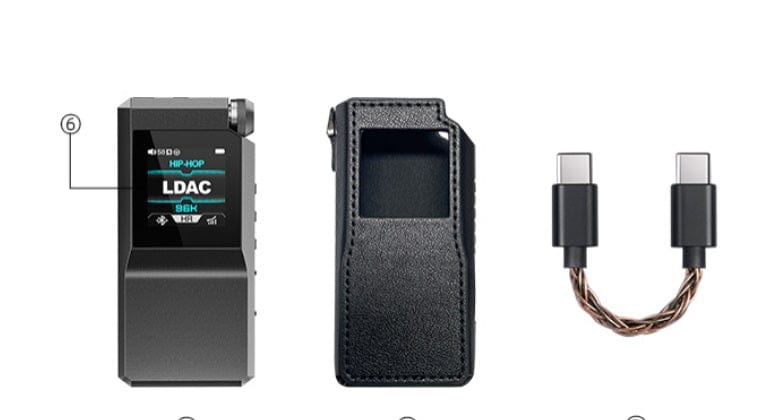

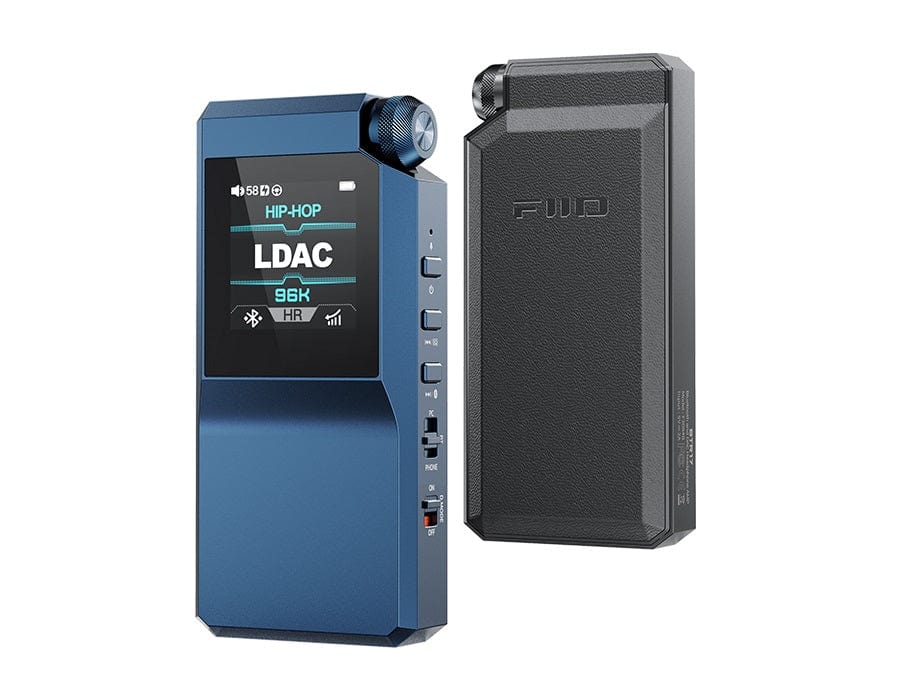

A usb c-c cable and prefect fit carry pouch with clip are included. The back panel has a non-slip leatherette finish and the multifunction aluminum volume dial is a treat to operate!

Suggestion: Go BIG - the FiiO FH9 7 driver IEM's perform awesome with the BTR17.

FiiO BTR17 Tech Specs:

• Power output: Desktop Mode: SE 280mW @ 32 ohms, BAL 650mW @ 32 ohms, 125mW @ 300 ohms
• Non-desktop Mode: SE 140mW @ 32 ohms, BAL 300mW @ 32 ohms
• SNR: 126dB (UAC decoding, desktop mode, BAL)
• THD: as low as 0.00035%
• DAC: Dual ES9069Q
• USB: xmos XU316
• BT Chip: QCC5181 flagship chip
• BT Version: 5.4
• BT formats: alt-X Lossless, LDAC, apt-X Adaptive, AAC
• Battery Life: about 8 hours (LDAC)
• Size: 8.7 x 4.1 x 1.6 cm
• Weight: 73g

Warranty: 1 Year by FiiO Canada
