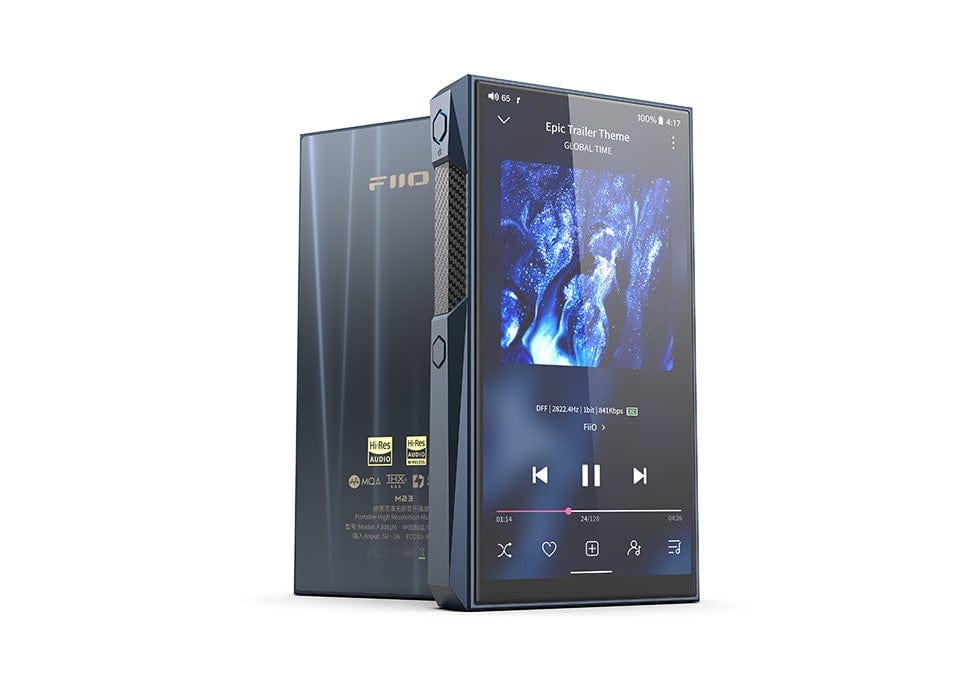

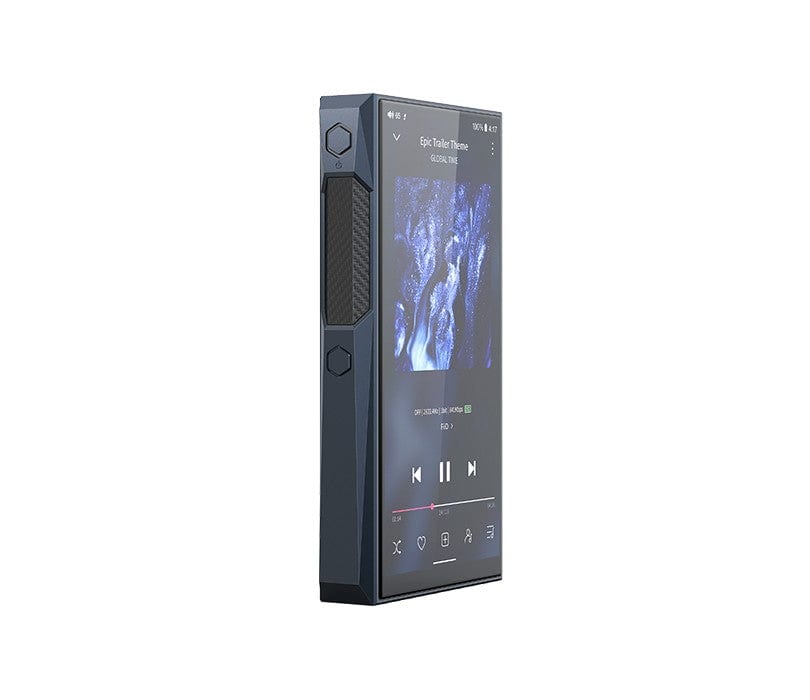

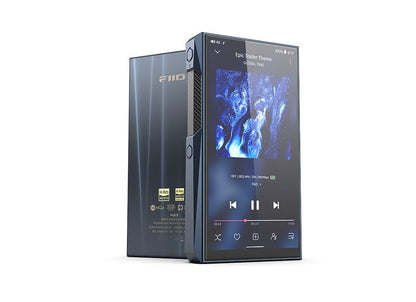

FiiO M23

FiiO M23 DAP | High end portable music player, using open android OS. Like the Q15 and K9 AKM, the M23 utilizes the flagship AKM DAC combo: AK4191EQ+AK4499EX.

Flagship AKM DAC Chip Featured

It is a new design that totally separates the digital and analog portions and also features the “DWA ROUTING Technology” to further improve the signal-to-noise ratio. These technologies allow for a purer audio background and higher resolution audio – resulting in a relaxed yet natural sound.

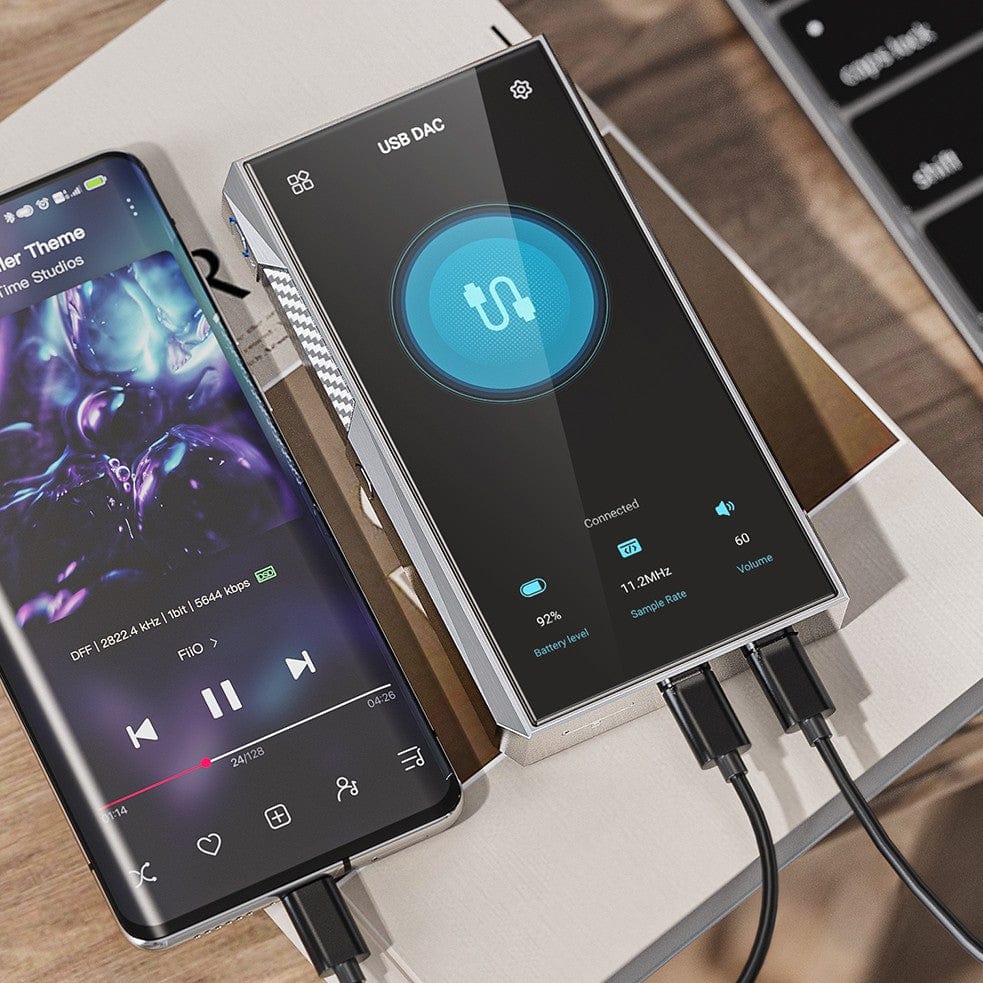

The M23 is FiiO’s first portable player with dual Type-C ports, one of which is dedicated to accepting power only (POWER IN). When this dedicated power Type-C port is connected to fast charging, the Super High Gain Mode can be activated for more gain and more output power.

Desktop Power from THX AAA78+ Amp

In this mode, the output power can reach up to 1000mW+1000mW per channel, making the M23 better suited for pushing high impedance headphones. While in this mode, the other Type-C port does not consume any power.

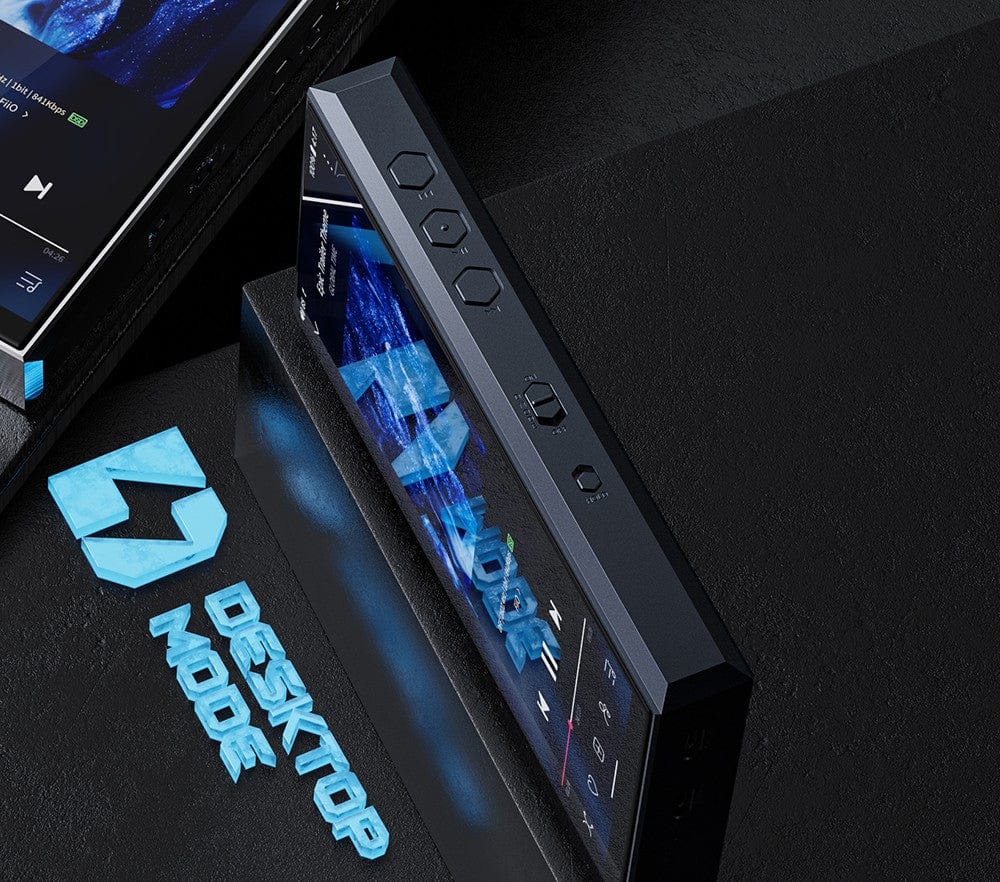

FiiO M23 also follows FiiO’s latest patented technology - Desktop mode (D.MODE), with a switch specifically for toggling. When the D.MODE is activated, the M23 is completely powered by an external power source. The built-in battery will neither be charged nor discharged, which ensures the M23 can be used as desktop equipment without fear of damaging the battery.

After several years of continuing to refine the design, we introduce the THX AAA 78+ amplifier architecture in the M23. It allows for greater power output with high fidelity, resulting in powerful sound reproduced with extreme accuracy.

Play On with Fast Charging

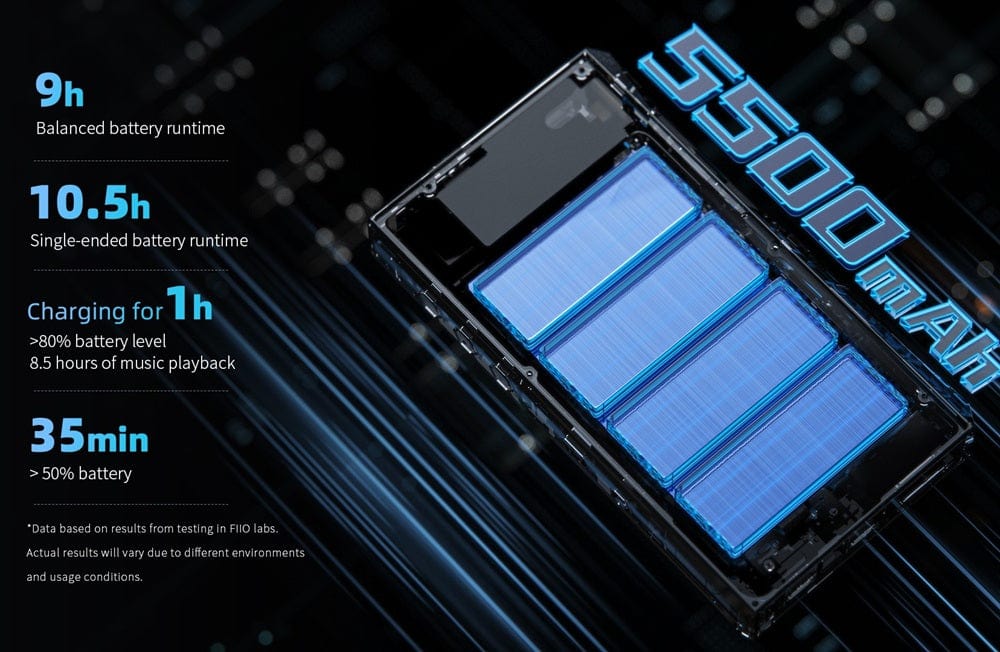

Fiio M23 employs a dual-mode fast-charging system that utilizes extreme fast-charging + normal fast charging. At a lower battery state of charge, extreme fast-charging is used to safely allow for up to 30W charging speeds.

When the battery gets close to a full state of charge, the M23 switches to slightly slower normal fast-charging, which allows for greatly improved charging times while still maintaining battery health.

Suggestion: Get everything out of the M23 DAP when you match it with the FiiO FX15 Tribrid IEM, with electrostatic tweeters.

FiiO M23 Tech Specs:

• CHIP SoC: Snapdragon 660
• DAC: AK4191EQ + AK4499EX
• Amplifier: 4-way THX AAA-78+
• Max File Support: 32-bit/384kHz, DSD256
• Storage: 64GB with MicroSD slot
• RAM: 4GB
• Wifi 2.4G & 5G + BT 5.0
• BT receive: AAC, LDAC
• BT Transmit: AAC, apt-x HD, LDAC
• Charging: USB-C w/ 30 watt fast charge

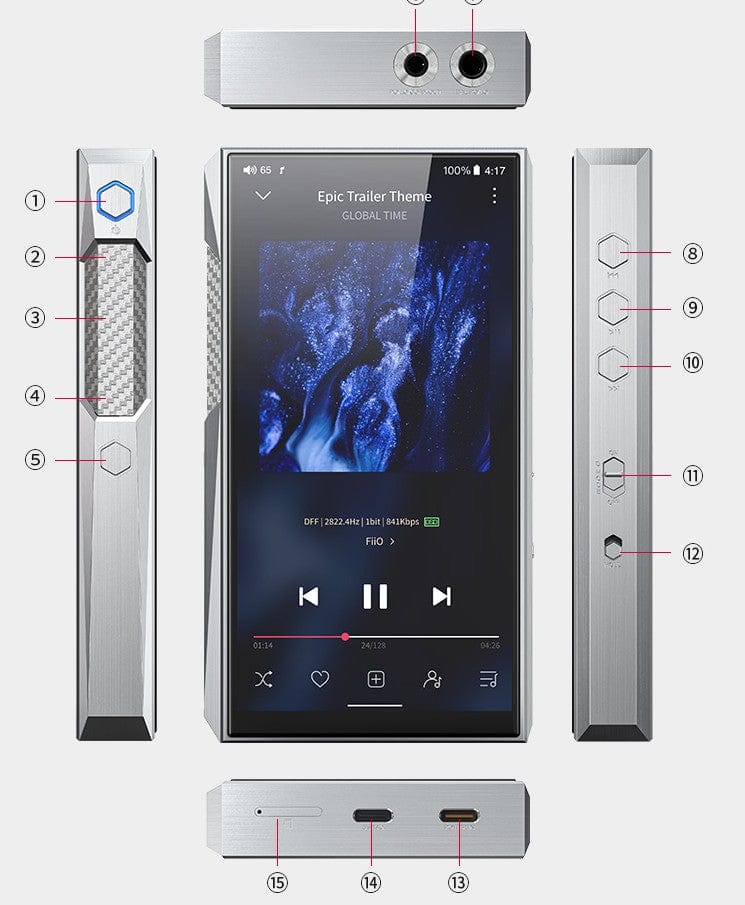

• Dual Type C: 1 Charge / Data; 1 Charge / power supply
• Power: Up to 1000mW BAL / 440mW SE
• Gain: Super / High / Medium / Low
• Weight: 299g (deep blue finish)
• Screen: 5.5", 1440 x 720
• Balance: L/R +/- 20
• Coax out via 3.5mm + adaptor (adaptor not included)
• Output Impedance: SE 1 ohm / BAL 2 ohm

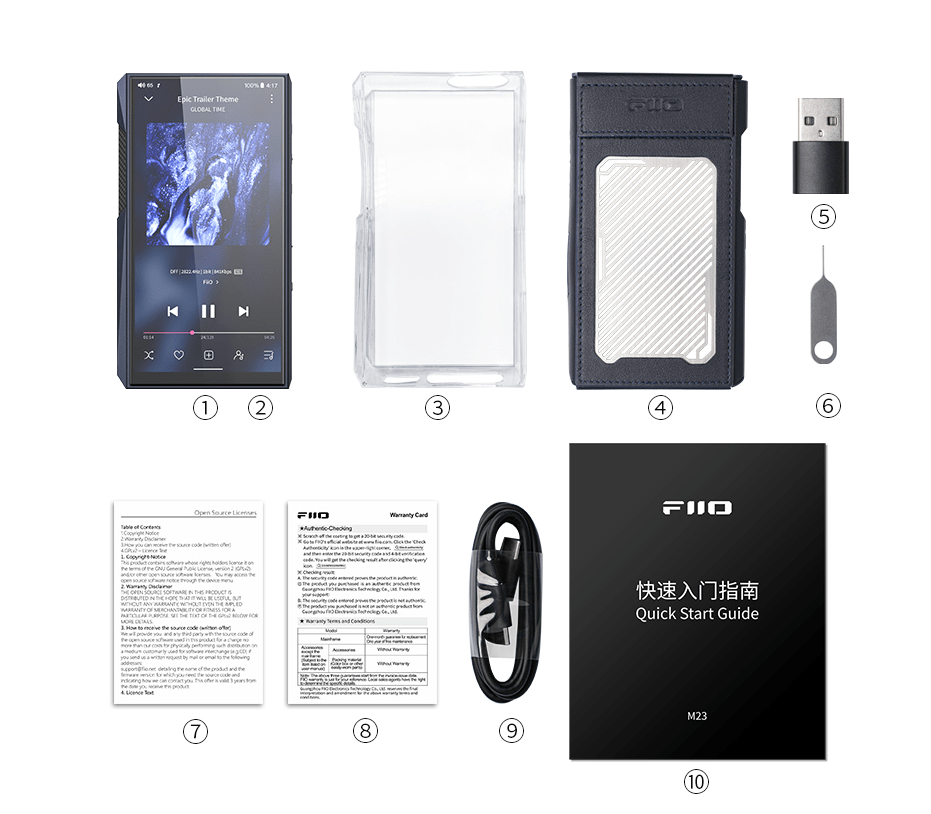

Incudes: clear case, screen protector applied, usb c-c cable, usb-a adaptor, sd card tray pin.

Warranty: 1 Year by FiiO Canada
